AI Agent Orchestration: Patterns That Scale in 2026

AI agent orchestration is the practice of coordinating multiple specialized AI agents to work together, expanding what you can accomplish beyond what any single agent can achieve. Choosing the right AI agent orchestration tools and orchestration software matters because distributing tasks across agents enables parallel processing, specialized expertise, and fault-tolerant workflows - addressing limitations like context constraints, specialization trade-offs, sequential bottlenecks, and single points of failure common in solo-agent systems.

As AI agents become more capable, the challenge shifts from making one agent work to coordinating many agents working together. Effective ai agent orchestration enables more workflows than any single agent can run alone - parallel processing, specialized expertise, and fault-tolerant workflows.

This guide explores the patterns that make ai agent orchestration reliable, efficient, and maintainable in production systems - whether you are evaluating orchestration open-source frameworks, enterprise platforms like AI Agent Orchestration ServiceNow, or pursuing orchestration jobs in this fast-growing field.

Why Multi-Agent Systems?

A single AI agent handling everything faces limitations:

• Context constraints: Even with large context windows, one agent can’t hold everything
• Specialization trade-offs: An agent optimized for code struggles with creative writing
• Sequential bottlenecks: One agent means one task at a time
• Single points of failure: If the agent fails, everything fails

Multi-agent architectures address these by distributing work across specialized agents that communicate and coordinate. The Python asyncio framework provides the foundation for many of these concurrent agent systems.

How Complex Can AI Agent Orchestration Get?

Agent orchestration exists on a spectrum from simple to complex:

Simple                                              Complex
   │                                                    │
   ▼                                                    ▼
Sequential → Parallel → Hierarchical → Emergent → Autonomous
  Chains       Fans         Trees       Swarms      Networks

Most production systems live in the middle - hierarchical orchestration with some parallelism. Let’s explore each pattern.

Pattern 1: Sequential Chains

The simplest pattern: agents execute in order, each passing output to the next.

When to Use

• Dependent steps where order matters
• Transformation pipelines
• Quality gates between stages

Implementation

class SequentialOrchestrator:
    def __init__(self, agents: list[Agent]):
        self.agents = agents

    async def execute(self, initial_input: dict) -> dict:
        """Execute agents in sequence, passing output forward."""
        current_input = initial_input

        for i, agent in enumerate(self.agents):
            try:
                result = await agent.execute(current_input)

                # Pass output as input to next agent
                current_input = {
                    **current_input,
                    f"step_{i}_output": result,
                    "previous_output": result
                }

            except AgentError as e:
                return {
                    "success": False,
                    "failed_at_step": i,
                    "error": str(e),
                    "partial_results": current_input
                }

        return {
            "success": True,
            "final_output": current_input["previous_output"],
            "all_outputs": current_input
        }

# Usage
pipeline = SequentialOrchestrator([
    ResearchAgent(),      # Step 1: Gather information
    AnalysisAgent(),      # Step 2: Analyze findings
    SynthesisAgent(),     # Step 3: Create summary
    ReviewAgent()         # Step 4: Quality check
])

result = await pipeline.execute({"topic": "AI trends 2026"})

Trade-offs

• Pro: Simple to understand and debug
• Pro: Clear data flow
• Con: Slow (no parallelism)
• Con: One failure stops everything

Pattern 2: Parallel Fan-Out/Fan-In

Multiple agents work simultaneously on independent subtasks, then results merge.

When to Use

• Independent subtasks that can run concurrently
• Time-sensitive operations
• Redundancy for reliability

Implementation

import asyncio
from typing import Callable

class ParallelOrchestrator:
    def __init__(
        self,
        agents: list[Agent],
        merger: Callable[[list[dict]], dict]
    ):
        self.agents = agents
        self.merger = merger

    async def execute(self, shared_input: dict) -> dict:
        """Execute all agents in parallel, then merge results."""

        # Fan-out: Start all agents concurrently
        tasks = [
            asyncio.create_task(agent.execute(shared_input))
            for agent in self.agents
        ]

        # Wait for all with timeout
        try:
            results = await asyncio.wait_for(
                asyncio.gather(*tasks, return_exceptions=True),
                timeout=60.0
            )
        except asyncio.TimeoutError:
            # Cancel remaining tasks
            for task in tasks:
                task.cancel()
            return {"success": False, "error": "Timeout waiting for agents"}

        # Separate successes and failures
        successes = []
        failures = []
        for i, result in enumerate(results):
            if isinstance(result, Exception):
                failures.append({"agent": i, "error": str(result)})
            else:
                successes.append(result)

        # Fan-in: Merge results
        merged = self.merger(successes)

        return {
            "success": len(failures) == 0,
            "merged_output": merged,
            "individual_results": successes,
            "failures": failures
        }

# Merger function example
def merge_research_results(results: list[dict]) -> dict:
    """Combine research from multiple sources."""
    all_findings = []
    all_sources = []

    for r in results:
        all_findings.extend(r.get("findings", []))
        all_sources.extend(r.get("sources", []))

    return {
        "combined_findings": all_findings,
        "total_sources": len(set(all_sources)),
        "sources": list(set(all_sources))
    }

# Usage
parallel = ParallelOrchestrator(
    agents=[
        WebSearchAgent(),
        DatabaseAgent(),
        DocumentAgent()
    ],
    merger=merge_research_results
)

LangChain provides robust primitives for building parallel agent workflows, with built-in support for fan-out/fan-in patterns through its LCEL (LangChain Expression Language) composition.

Pattern 3: Hierarchical Delegation

A coordinator agent delegates to specialist agents based on task requirements. This pattern mirrors Microsoft’s orchestration patterns for distributed systems.

When to Use

• Complex tasks requiring different expertise
• Dynamic routing based on content
• When you need a single point of control

Implementation

class HierarchicalOrchestrator:
    def __init__(self, coordinator: Agent, specialists: dict[str, Agent]):
        self.coordinator = coordinator
        self.specialists = specialists

    async def execute(self, task: dict) -> dict:
        """Coordinator analyzes task and delegates to specialists."""

        # Step 1: Coordinator plans the approach
        plan = await self.coordinator.plan(task)

        results = {}

        # Step 2: Execute each planned step
        for step in plan["steps"]:
            specialist_name = step["delegate_to"]
            specialist_input = step["input"]

            if specialist_name not in self.specialists:
                return {
                    "success": False,
                    "error": f"Unknown specialist: {specialist_name}"
                }

            specialist = self.specialists[specialist_name]

            # Execute with context from previous steps
            step_result = await specialist.execute({
                **specialist_input,
                "context": results
            })

            results[step["name"]] = step_result

            # Check if coordinator wants to adjust plan
            if step.get("checkpoint"):
                adjusted_plan = await self.coordinator.review(
                    original_plan=plan,
                    completed_steps=results
                )
                if adjusted_plan["should_adjust"]:
                    plan = adjusted_plan["new_plan"]

        # Step 3: Coordinator synthesizes final result
        final = await self.coordinator.synthesize(results)

        return {
            "success": True,
            "final_output": final,
            "step_results": results,
            "plan_executed": plan
        }

# Usage
orchestrator = HierarchicalOrchestrator(
    coordinator=ProjectManagerAgent(),
    specialists={
        "researcher": ResearchAgent(),
        "writer": WritingAgent(),
        "coder": CodingAgent(),
        "reviewer": ReviewAgent()
    }
)

result = await orchestrator.execute({
    "task": "Create a technical blog post about MCP servers",
    "requirements": {
        "word_count": 2000,
        "include_code": True,
        "audience": "developers"
    }
})

Pattern 4: Supervisor with Workers

A supervisor monitors worker agents, handling failures and load balancing.

When to Use

• High-volume processing
• Reliability-critical systems
• When you need automatic failure recovery

Implementation

import asyncio
from dataclasses import dataclass
from enum import Enum

class WorkerStatus(Enum):
    IDLE = "idle"
    BUSY = "busy"
    FAILED = "failed"

@dataclass
class WorkerState:
    agent: Agent
    status: WorkerStatus
    current_task: dict | None = None
    consecutive_failures: int = 0

class SupervisorOrchestrator:
    def __init__(
        self,
        workers: list[Agent],
        max_failures: int = 3,
        retry_delay: float = 1.0
    ):
        self.workers = [
            WorkerState(agent=w, status=WorkerStatus.IDLE)
            for w in workers
        ]
        self.max_failures = max_failures
        self.retry_delay = retry_delay
        self.task_queue = asyncio.Queue()
        self.results = {}

    async def submit_task(self, task_id: str, task: dict):
        """Add task to queue for processing."""
        await self.task_queue.put((task_id, task))

    async def get_available_worker(self) -> WorkerState | None:
        """Find an idle worker that hasn't failed too many times."""
        for worker in self.workers:
            if (worker.status == WorkerStatus.IDLE and
                worker.consecutive_failures < self.max_failures):
                return worker
        return None

    async def process_with_worker(
        self,
        worker: WorkerState,
        task_id: str,
        task: dict
    ):
        """Assign task to worker and handle result."""
        worker.status = WorkerStatus.BUSY
        worker.current_task = task

        try:
            result = await worker.agent.execute(task)
            worker.consecutive_failures = 0  # Reset on success
            self.results[task_id] = {"success": True, "result": result}

        except Exception as e:
            worker.consecutive_failures += 1

            if worker.consecutive_failures >= self.max_failures:
                worker.status = WorkerStatus.FAILED
                # Re-queue task for another worker
                await self.task_queue.put((task_id, task))
            else:
                # Retry with same worker after delay
                await asyncio.sleep(self.retry_delay)
                await self.task_queue.put((task_id, task))

            self.results[task_id] = {
                "success": False,
                "error": str(e),
                "retrying": worker.consecutive_failures < self.max_failures
            }

        finally:
            if worker.status != WorkerStatus.FAILED:
                worker.status = WorkerStatus.IDLE
            worker.current_task = None

    async def run(self):
        """Main supervisor loop."""
        while True:
            task_id, task = await self.task_queue.get()

            worker = await self.get_available_worker()

            if worker is None:
                # No workers available, re-queue
                await asyncio.sleep(0.1)
                await self.task_queue.put((task_id, task))
                continue

            # Process in background
            asyncio.create_task(
                self.process_with_worker(worker, task_id, task)
            )

Pattern 5: Pipeline with Checkpoints

Long-running workflows with save points for recovery.

When to Use

• Multi-hour or multi-day workflows
• When you can’t afford to restart from scratch
• Workflows with external dependencies

Implementation

from datetime import datetime
import json

class CheckpointedPipeline:
    def __init__(self, stages: list[Agent], checkpoint_store: str):
        self.stages = stages
        self.checkpoint_store = checkpoint_store

    def save_checkpoint(self, workflow_id: str, state: dict):
        """Persist current state to storage."""
        checkpoint = {
            "workflow_id": workflow_id,
            "timestamp": datetime.utcnow().isoformat(),
            "state": state
        }
        with open(f"{self.checkpoint_store}/{workflow_id}.json", "w") as f:
            json.dump(checkpoint, f)

    def load_checkpoint(self, workflow_id: str) -> dict | None:
        """Load saved state if exists."""
        try:
            with open(f"{self.checkpoint_store}/{workflow_id}.json") as f:
                return json.load(f)
        except FileNotFoundError:
            return None

    async def execute(self, workflow_id: str, initial_input: dict) -> dict:
        """Execute pipeline with checkpoint recovery."""

        # Check for existing checkpoint
        checkpoint = self.load_checkpoint(workflow_id)

        if checkpoint:
            current_stage = checkpoint["state"]["completed_stages"]
            accumulated = checkpoint["state"]["accumulated_results"]
            print(f"Resuming from stage {current_stage}")
        else:
            current_stage = 0
            accumulated = {"input": initial_input}

        # Execute remaining stages
        for i in range(current_stage, len(self.stages)):
            stage = self.stages[i]

            try:
                result = await stage.execute(accumulated)
                accumulated[f"stage_{i}"] = result

                # Save checkpoint after each stage
                self.save_checkpoint(workflow_id, {
                    "completed_stages": i + 1,
                    "accumulated_results": accumulated
                })

            except Exception as e:
                # Save failure state for debugging
                self.save_checkpoint(workflow_id, {
                    "completed_stages": i,
                    "accumulated_results": accumulated,
                    "failed_at": i,
                    "error": str(e)
                })
                raise

        return {
            "success": True,
            "workflow_id": workflow_id,
            "results": accumulated
        }

Pattern 6: Event-Driven Agents

Agents respond to events rather than being directly invoked.

When to Use

• Reactive systems
• Loose coupling between agents
• When timing of tasks is unpredictable

Implementation

from typing import Callable
import asyncio

class EventBus:
    def __init__(self):
        self.subscribers: dict[str, list[Callable]] = {}

    def subscribe(self, event_type: str, handler: Callable):
        if event_type not in self.subscribers:
            self.subscribers[event_type] = []
        self.subscribers[event_type].append(handler)

    async def publish(self, event_type: str, data: dict):
        handlers = self.subscribers.get(event_type, [])
        await asyncio.gather(*[
            handler(data) for handler in handlers
        ])

class EventDrivenAgent:
    def __init__(self, name: str, event_bus: EventBus):
        self.name = name
        self.event_bus = event_bus

    def listen_to(self, event_type: str):
        """Decorator to register event handlers."""
        def decorator(handler):
            self.event_bus.subscribe(event_type, handler)
            return handler
        return decorator

    async def emit(self, event_type: str, data: dict):
        """Publish an event for other agents."""
        await self.event_bus.publish(event_type, {
            "source": self.name,
            "data": data
        })

# Usage
bus = EventBus()

content_agent = EventDrivenAgent("content", bus)
review_agent = EventDrivenAgent("review", bus)
publish_agent = EventDrivenAgent("publish", bus)

@content_agent.listen_to("content_requested")
async def handle_content_request(event):
    content = await generate_content(event["data"])
    await content_agent.emit("content_created", {"content": content})

@review_agent.listen_to("content_created")
async def handle_content_review(event):
    review = await review_content(event["data"]["content"])
    if review["approved"]:
        await review_agent.emit("content_approved", event["data"])
    else:
        await review_agent.emit("content_rejected", {
            **event["data"],
            "feedback": review["feedback"]
        })

@publish_agent.listen_to("content_approved")
async def handle_publish(event):
    await publish_content(event["data"]["content"])
    await publish_agent.emit("content_published", event["data"])

Error Handling Strategies

Multi-agent systems need robust error handling.

Strategy 1: Retry with Backoff

async def retry_with_backoff(
    func: Callable,
    max_retries: int = 3,
    base_delay: float = 1.0
):
    for attempt in range(max_retries):
        try:
            return await func()
        except Exception as e:
            if attempt == max_retries - 1:
                raise
            delay = base_delay * (2 ** attempt)
            await asyncio.sleep(delay)

Strategy 2: Circuit Breaker

class CircuitBreaker:
    def __init__(self, failure_threshold: int = 5, reset_timeout: float = 60):
        self.failures = 0
        self.threshold = failure_threshold
        self.reset_timeout = reset_timeout
        self.last_failure = None
        self.state = "closed"

    async def call(self, func: Callable):
        if self.state == "open":
            if time.time() - self.last_failure > self.reset_timeout:
                self.state = "half-open"
            else:
                raise CircuitOpenError("Circuit breaker is open")

        try:
            result = await func()
            if self.state == "half-open":
                self.state = "closed"
                self.failures = 0
            return result

        except Exception as e:
            self.failures += 1
            self.last_failure = time.time()
            if self.failures >= self.threshold:
                self.state = "open"
            raise

Strategy 3: Fallback Agents

class FallbackOrchestrator:
    def __init__(self, primary: Agent, fallbacks: list[Agent]):
        self.primary = primary
        self.fallbacks = fallbacks

    async def execute(self, task: dict) -> dict:
        agents = [self.primary] + self.fallbacks

        for i, agent in enumerate(agents):
            try:
                result = await agent.execute(task)
                return {
                    "success": True,
                    "result": result,
                    "used_fallback": i > 0,
                    "fallback_level": i
                }
            except Exception as e:
                if i == len(agents) - 1:
                    return {
                        "success": False,
                        "error": "All agents failed",
                        "last_error": str(e)
                    }
                continue

Monitoring and Observability

Production multi-agent systems need visibility.

Key Metrics

from dataclasses import dataclass, field
from datetime import datetime

@dataclass
class AgentMetrics:
    agent_name: str
    invocations: int = 0
    successes: int = 0
    failures: int = 0
    total_duration_ms: float = 0
    last_invocation: datetime | None = None

    @property
    def success_rate(self) -> float:
        if self.invocations == 0:
            return 0
        return self.successes / self.invocations

    @property
    def avg_duration_ms(self) -> float:
        if self.invocations == 0:
            return 0
        return self.total_duration_ms / self.invocations

class MetricsCollector:
    def __init__(self):
        self.metrics: dict[str, AgentMetrics] = {}

    def record(self, agent_name: str, success: bool, duration_ms: float):
        if agent_name not in self.metrics:
            self.metrics[agent_name] = AgentMetrics(agent_name=agent_name)

        m = self.metrics[agent_name]
        m.invocations += 1
        m.total_duration_ms += duration_ms
        m.last_invocation = datetime.utcnow()

        if success:
            m.successes += 1
        else:
            m.failures += 1

    def get_dashboard(self) -> dict:
        return {
            name: {
                "success_rate": f"{m.success_rate:.1%}",
                "avg_duration": f"{m.avg_duration_ms:.0f}ms",
                "total_calls": m.invocations
            }
            for name, m in self.metrics.items()
        }

Choosing the Right AI Agent Orchestration Pattern

Most real systems combine patterns. A supervisor might manage workers that each run sequential pipelines, with event-driven notifications throughout.

Combining Patterns in Practice

Picking one pattern from the table above is a starting point, but production systems in 2026 rarely use a single pattern in isolation. Here are practical guidelines for combining them effectively:

• Start sequential, add parallelism where it helps. Profile your pipeline first. If two sequential stages have no data dependency, move them into a parallel fan-out and merge their results before the next stage. This alone can cut execution time by 30-50% without adding architectural complexity.
• Use hierarchical delegation as the outer shell. A coordinator agent can route tasks to sub-orchestrators that each use a different pattern internally - a sequential chain for content generation, parallel fan-out for research, and a supervisor for bulk data processing.
• Layer event-driven notifications over any pattern. Even if your core workflow is a simple sequential chain, publishing events at each stage transition enables monitoring dashboards, audit logs, and downstream integrations without coupling them to your pipeline logic.
• Add checkpoints to anything that takes longer than five minutes. If a workflow runs long enough for a network hiccup or API timeout to be likely, the cost of implementing checkpoint saves is far lower than the cost of restarting from scratch.

The key principle is progressive complexity. Begin with the simplest pattern that works, measure where bottlenecks and failure points emerge, and layer in additional patterns to address those specific problems.

Conclusion

Mastering ai agent orchestration transforms what’s possible with AI systems. The patterns in this guide - sequential chains, parallel fans, hierarchical delegation, supervised workers, checkpointed pipelines, and event-driven architectures - provide building blocks for sophisticated systems.

Start simple. A sequential chain often suffices. Add complexity only when you hit limitations. The best orchestration is the simplest one that meets your requirements.

As AI agents become more capable, ai agent orchestration becomes the differentiator. Master these patterns, and you’ll build systems that use AI’s full potential.

Frequently Asked Questions

What does AI agent orchestration mean?

AI agent orchestration means coordinating multiple AI agents working together to accomplish tasks no single agent can handle alone - such as parallel processing, specialized expertise, and fault-tolerant workflows. As agents become more capable, the challenge shifts from making one agent work to managing how many agents collaborate effectively. The patterns range from simple sequential chains to event-driven architectures with hundreds of independent agents responding to messages on a shared bus.

What are the most common orchestration patterns for AI agents?

Six patterns cover most production scenarios: sequential chains for ordered transformation pipelines, fan-out/fan-in for parallel independent tasks, hierarchical delegation for complex multi-skill work, supervisor with workers for high-volume processing, pipelines with checkpoints for long-running workflows, and event-driven architectures for reactive loose coupling. Real systems usually combine several of these rather than picking just one - for example, a supervisor managing workers that each run a sequential chain internally.

What is the best AI orchestration framework or tool?

There is no single best answer because the right choice depends on your scale, language, and existing stack. LangChain and LangGraph are popular Python frameworks for building agent graphs. CrewAI emphasizes role-based collaboration. Microsoft AutoGen focuses on conversational multi-agent patterns. For no-code orchestration of agents and SaaS tools, Make and Zapier handle the integration layer well. Start with the simplest pattern that solves your problem and add complexity only when you hit a measurable limitation.

How do you handle errors in a multi-agent system?

Three strategies cover most cases: retry with exponential backoff for transient failures (network blips, rate limits), circuit breakers to stop cascading failures when a downstream service is unhealthy, and fallback agents that route to a backup when the primary fails. Layer in checkpointing for any workflow over five minutes so a single failure does not force restart from scratch. Add metrics and tracing from day one - debugging multi-agent systems without observability is painful.

When should I use multiple agents instead of one larger agent?

Use multiple agents when you hit context window limits, need different specializations (research versus writing versus code), want parallel execution to cut wall-clock time, or need fault tolerance through redundancy. A single capable agent is fine when the task fits the context window, runs sequentially anyway, and a single failure is acceptable. The trade-off is complexity: multi-agent systems are harder to debug, more expensive (multiple LLM calls), and require careful design of the inter-agent communication protocol.

Related Guides

• Building MCP Servers Guide
• Claude Code Hooks Deep Dive
• Claude Code Skills Tutorial
• Building AI-First Workflows

Related Reads

Tools covered in this article:

• Claude Code - AI coding assistant with multi-agent orchestration capabilities
• Make - Visual workflow automation for connecting agents and services
• Zapier - No-code automation platform for agent orchestration

More AI automation guides:

• Building MCP Servers Guide - Create custom tool integrations
• Agent Hooks Deep Dive - Automate pre/post execution workflows
• Best AI Automation Tools 2026 - Compare orchestration platforms

External Resources

For official documentation and frameworks:

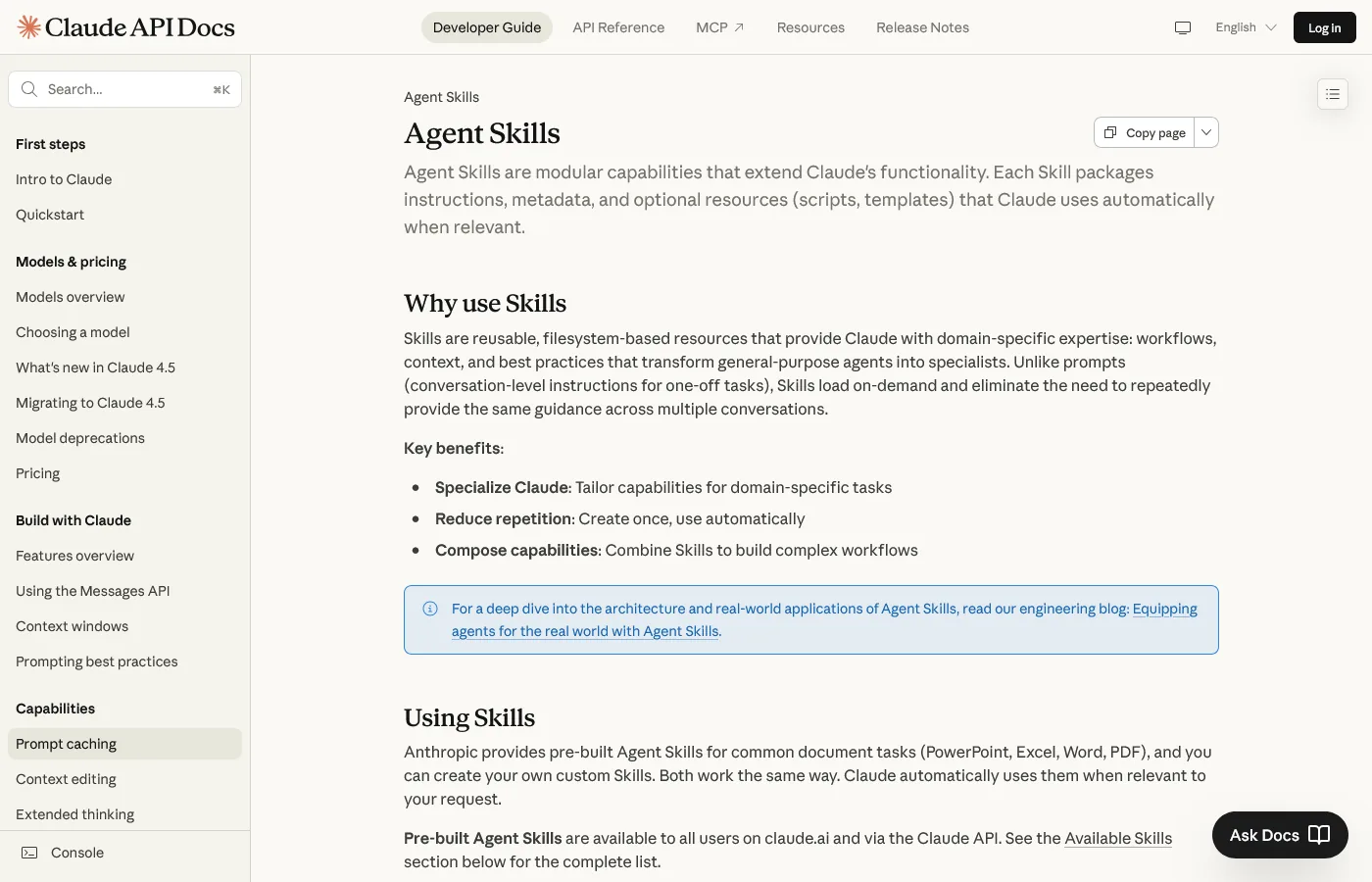

• Claude Agent Skills Documentation - Official Claude agent capabilities and patterns
• LangChain Agents - Python agent framework
• Make - Visual workflow automation
• Zapier - No-code agent orchestration
